How a microscope works

Understanding-oriented. The deepest page of the CoreBox docs — worth it, because after this you understand every research microscope you'll ever meet.

A microscope is not "a stronger magnifying glass". It magnifies in two stages: an objective forms an enlarged real image of the sample, and an eyepiece magnifies that image again, like a loupe. Total magnification is the product:

$M_\text{total} = M_\text{objective} \times M_\text{eyepiece}$

The two microscope architectures in the CoreBox differ only in how the objective forms that first image.

The classical way: finite optics

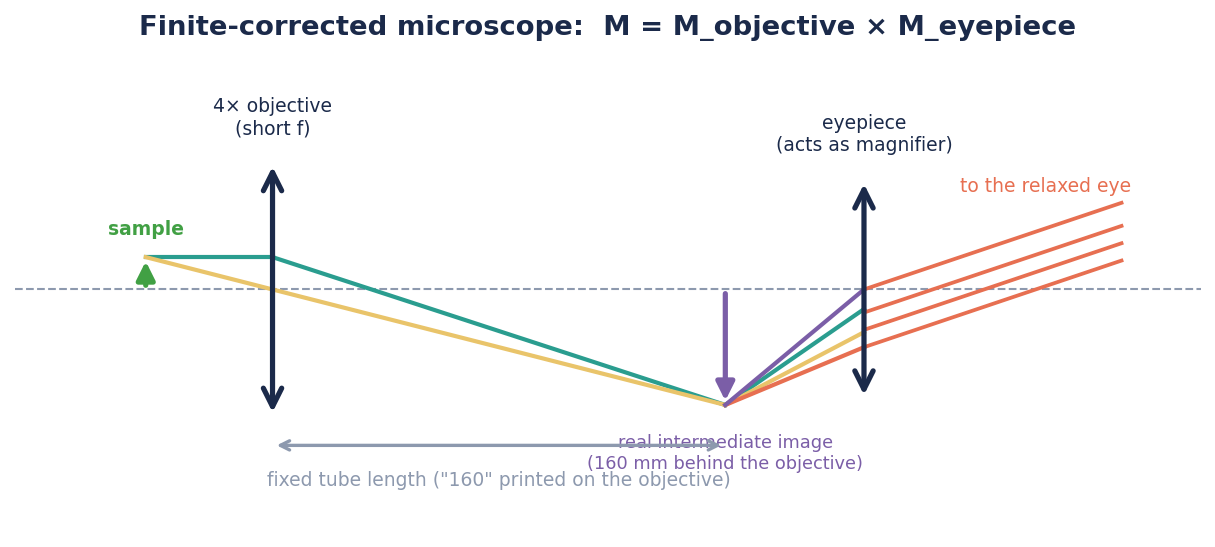

The sample sits just outside the focal length of a short-f objective — the "projector regime" pushed to the extreme (see How images form). The objective casts a strongly enlarged, real intermediate image at a fixed distance: the tube length, 160 mm by DIN convention, printed right on the barrel.

The CoreBox 4× objective works this way. Its magnification is fixed by design (that's the "4×"), and the eyepiece adds its loupe factor:

$M_\text{total} = 4 \times \frac{250\ \text{mm}}{f_\text{eyepiece}}$

The catch: the geometry is rigid. The intermediate image must land exactly 160 mm away, so you cannot insert filters or extra optics into the tube without shifting the image and breaking the objective's built-in aberration corrections.

The modern way: infinity optics

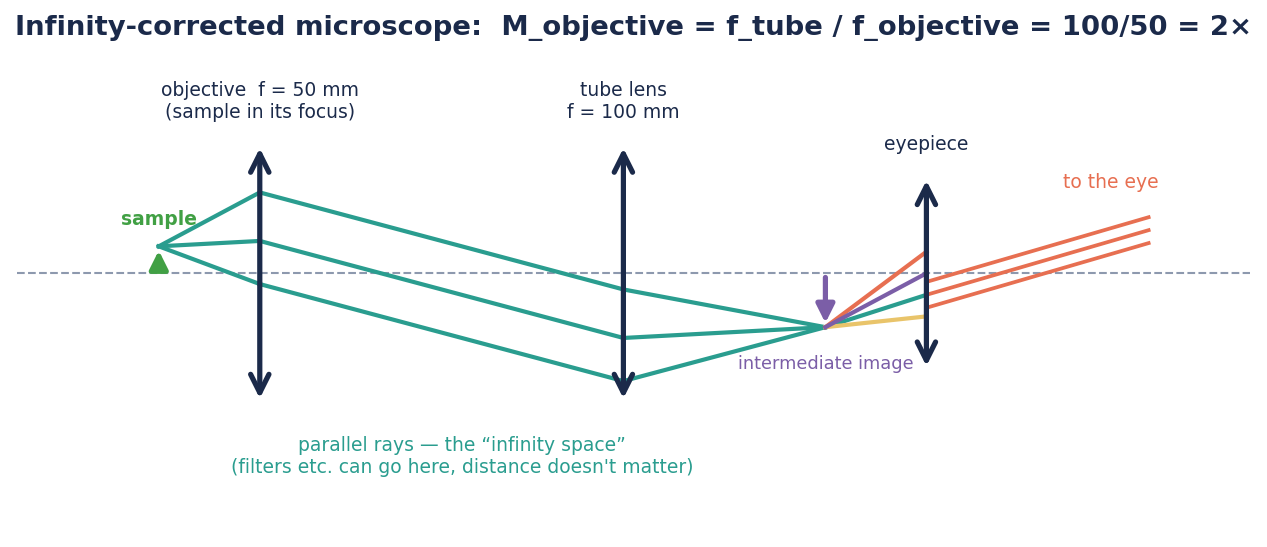

Put the sample exactly in the focal plane of the objective and something interesting happens: every point of the sample turns into a parallel bundle of rays — the image "forms at infinity", i.e. nowhere yet. A second lens, the tube lens, then focuses those bundles into the real intermediate image.

The objective magnification is now a ratio of focal lengths:

$M_\text{objective} = \frac{f_\text{tube}}{f_\text{objective}}$

In the CoreBox build: 100 mm / 50 mm = 2×, and with the 50 mm eyepiece (250/50 = 5×) a total of 10×.

Why bother? The infinity space

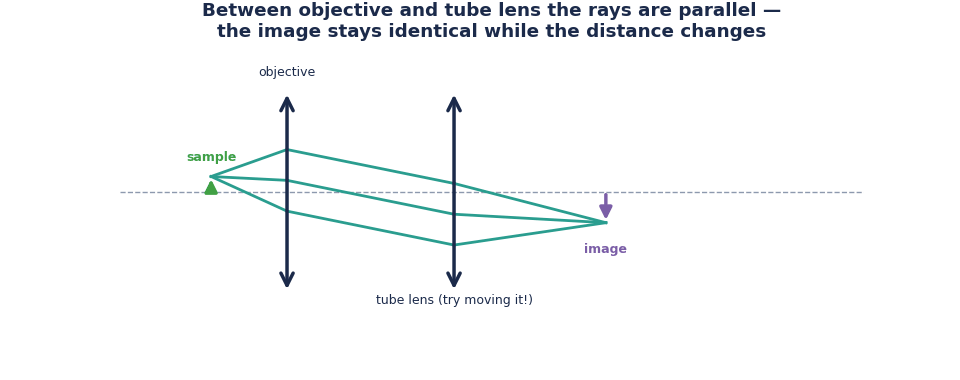

Between objective and tube lens the light is parallel — and parallel rays don't care how far they travel:

You can stretch this "infinity space" and, more importantly, fill it with flat optical components — colour filters, polarizers, beam splitters, fluorescence filter cubes — without shifting the image at all. Every current research microscope (Zeiss, Leica, Nikon, Olympus — with tube lens focal lengths of 165/200/200/180 mm respectively) is built this way for exactly this reason. When you slide the tube lens back and forth in your CoreBox build and the image refuses to move, you are seeing the design principle of a €300,000 confocal microscope.

Decoding the objective

The numbers engraved on the 4× objective:

Marking	Meaning
4×	magnification (at the design tube length)
0.10	numerical aperture (NA) — see below
160	designed for 160 mm finite tube length ("∞" would mean infinity-corrected)
0.17	designed for a 0.17 mm cover slip

Objectives up to 4× are often a single lens; higher magnifications hide entire multi-lens systems in the barrel to fight aberrations.

Numerical aperture: the real limit

Magnification you can always add — a shorter eyepiece, digital zoom. What you cannot add afterwards is detail. The detail limit is set by the numerical aperture, the sine of the half-angle of the light cone the objective accepts:

$d_\text{min} \approx \frac{\lambda}{2\,\text{NA}}$

For the CoreBox objective (NA 0.1, green light λ ≈ 550 nm): $d_\text{min} \approx 2.8$ µm. Structures closer together than that merge into mush, no matter how much you magnify — magnification beyond what the NA supports is called empty magnification. (Why a light cone limits detail is a wave-optics story — diffraction — and the HoloBox picks it up from there.)

This one number explains the economics of microscopy: high-NA objectives need many precisely made lenses in a tight cone above the sample — that is what you pay for, not the magnification printed next to it.

The eyepiece, briefly

An eyepiece is a magnifier for the intermediate image. The CoreBox ships a Ramsden eyepiece: two identical plano-convex lenses a set distance apart. Versus a single lens it gives a flatter, wider field with fewer colour errors at the edge — compare them yourself in the smartphone microscope. The bright little disc of light floating above the eyepiece (find it with a paper screen!) is the exit pupil — your eye's pupil, or the phone camera, must sit exactly there, which is why phone positioning is so fussy.

Where this shows up in the CoreBox

Idea on this page	You'll meet it in…
Finite optics, tube length	Build the finite microscope
Infinity space	Build the infinity microscope
Two-stage magnification	Calibrate the magnification
Exit pupil	Troubleshooting

---

Want wave optics next? The CoreBox deliberately stops where geometrical optics stops. Interference, diffraction and holography live in the HoloBox documentation.
